18.96 mm x 10 mm (4:3)
Active Micro 4/3
Aperture, focus and zoom with compatible lenses
13 stops
400 and 3200
4096 x 2160 (4K DCI), 3840 x 2160 (Ultra HD), 1920 x 1080 (HD)
The maximum frame rate of the sensor varies depending on the resolution and selected codecs. Supported project frame rates: 23.98, 24, 25, 29.97, 30, 50, 59.94 and 60 fps
Off-speed frame rates up to 60 fps in 4K DCI, 120 fps in HD in windowed mode
Autofocus available for compatible lenses
On-screen touch wheel and slider for manual adjustment on electronically controlled lenses; instant auto-adjustment button for compatible lenses

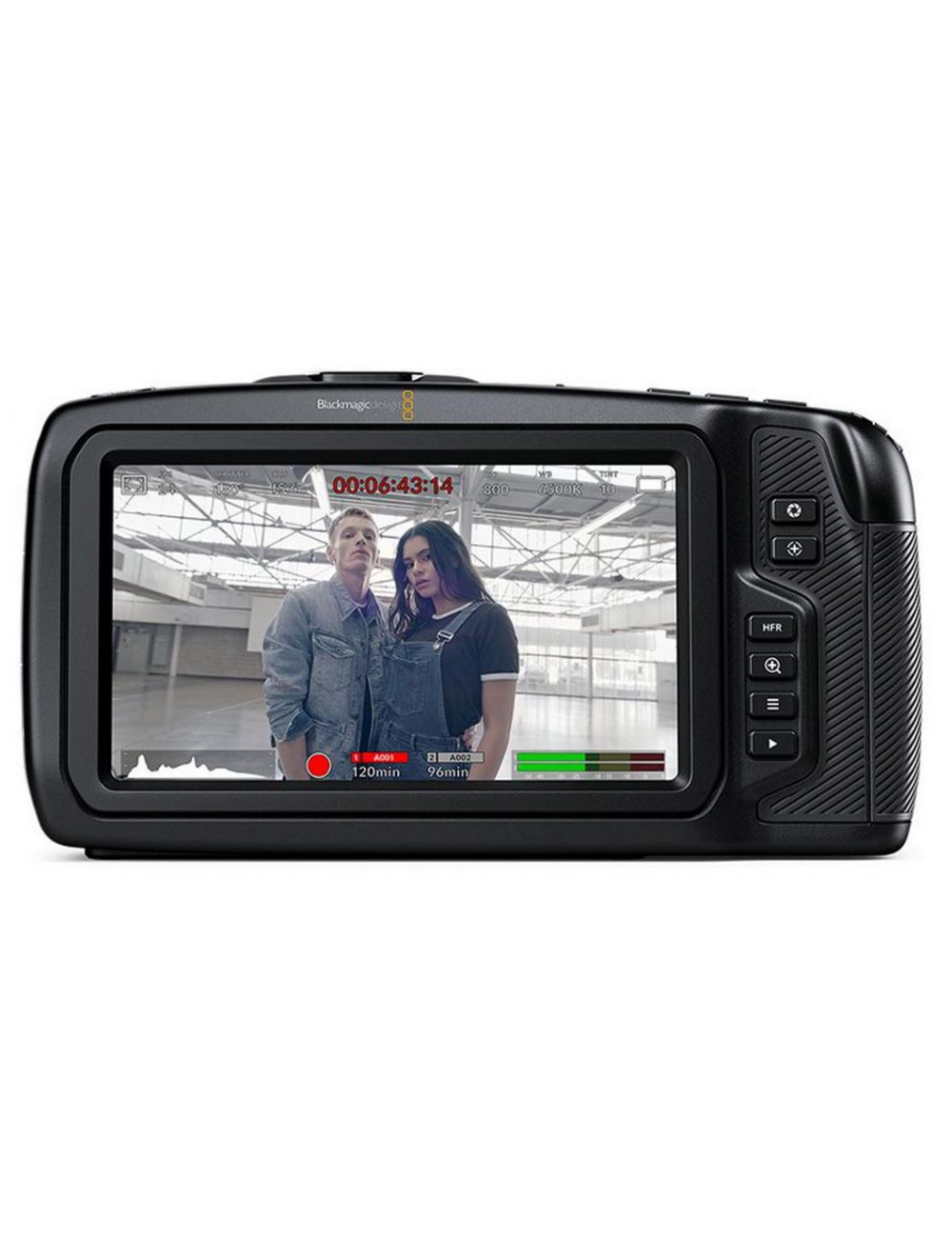

5" (1920 x 1080)
Capacitive touchscreen LCD
Automatic compilation of data from electronic Micro 4/3 lenses. Automatic saving of camera settings and digital clapperboard information, including project, scene number, take, and notes
5” on-screen touch menu. 1 x power switch, 1 x REC button, 1 x photo button, 1 x push-and-turn dial on the grip, 1 x ISO button, 1 x white balance button, 1 x shutter button, 3 x software-configurable function buttons, 1 x HFR button, 1 x zoom button, 1 x menu button, 1 x play button, 1 x focus button, 1 x aperture button
None

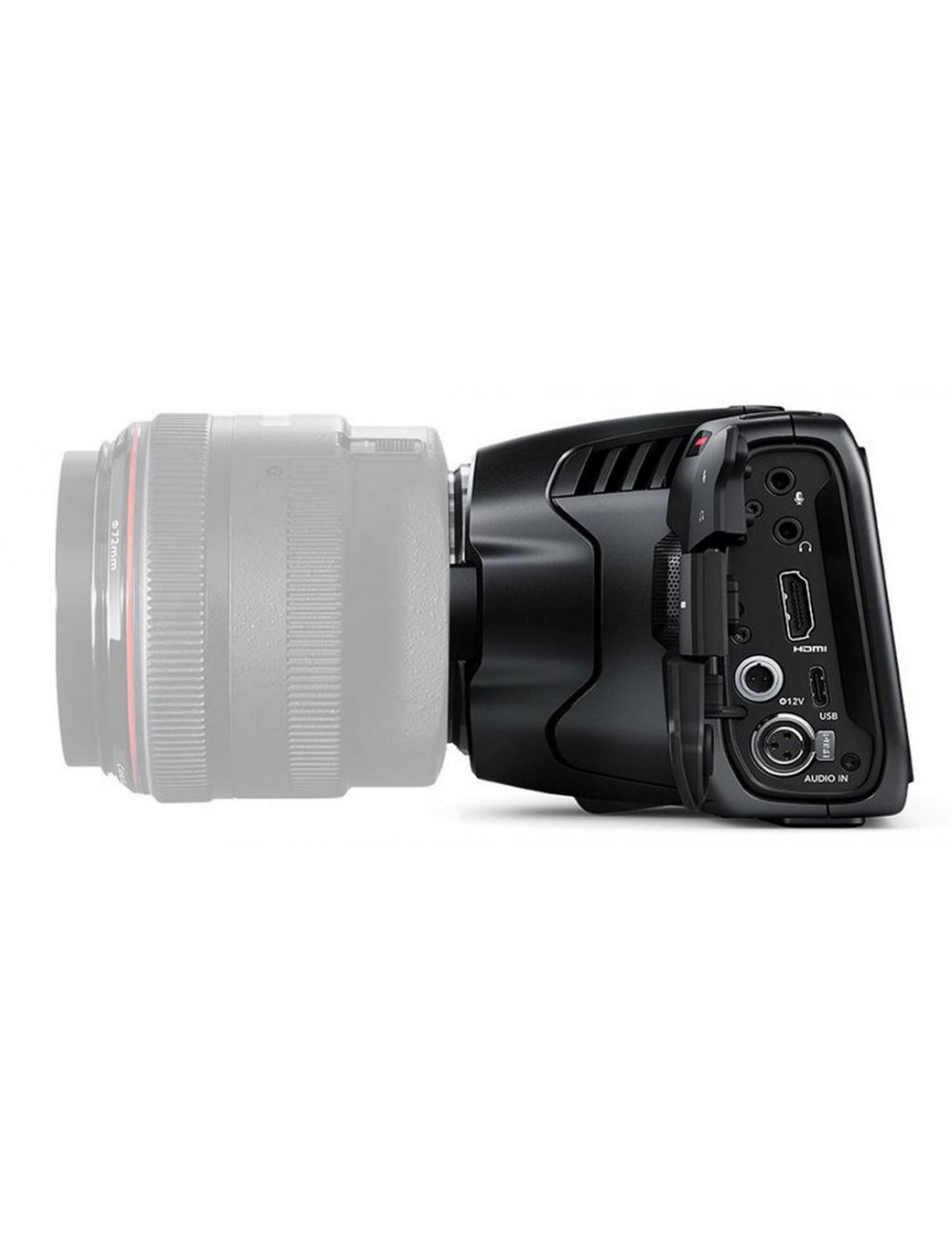

1 x HDMI Type A
1 x mini XLR for analogue audio, switchable between mic level with phantom power and line level (up to +14dBu). 1 x 3.5 mm stereo input. Can be used as a timecode input
1 x 3.5 mm headphone output
USB-C for recording to external storage devices and updating the software
